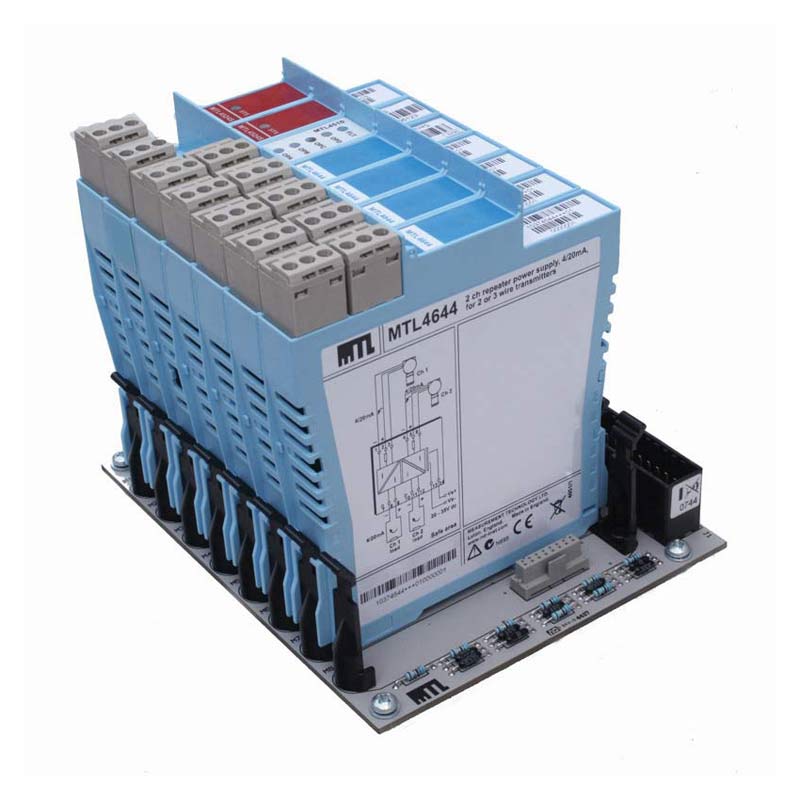

MTL4600 range
Signal isolering genom MTL4600 serien ger utmärkt skydd mot:
- Överspänning
- Många vanliga fel
- Elektriskt bullriga miljöer
Isolatorerna eliminerar också risken för jordslingor mellan olika delar av anläggningen. MTL4600 isolatorer är helt kompatibla med alla existerande bakplan till MTL4500 serien.
Egenskaper hos MTL4600 isolatorer:
- 3 - port isolering som standard
- Högsta packningstäthet modul/kanal
- Låg effekt förlust
- Snabb installation
- Flerkanaliga I/O moduler
- Short cirquit/line fault detection
För Intrinsic Safety (IS) applikationer, gå till MTL4500 range.
Produktbeskrivningar
| Produkt kod | Beskrivning | Nedladdning |
|---|---|---|
| 1. Intro | ||
| INM4500-4600 | MTL4600 & 4500 range - Instruction Manual | Manual |
| MTL4600 | MTL4600 range dataset | Datasheet |
| MTL4600 series overview | MTL4600 range overview | Datasheet |
| MTL4600-ACC | MTL4600 range - Enclosures and Accessories | Datasheet |
| MTL4600-CS | MTL4600 range - Common specification | Datasheet |
| 2. Digital Input | ||
| MTL4604 | 1ch DI relay output + LFD alarm + phase reversal | Datasheet |
| MTL4610 | 4ch DI solid-state output | Datasheet |
| MTL4611 | 1ch DI relay output | Datasheet |
| MTL4614 | 1ch DI relay output + LFD alarm | Datasheet |
| MTL4614D | 1ch DI switch/prox input, dual output relay | Datasheet |
| MTL4616 | 2ch DI relay output | Datasheet |
| MTL4617 | 2ch DI relay output + LFD alarm | Datasheet |
| 3. Digital Output | ||
| MTL4621 | Loop powered solenoid driver | Datasheet |
| MTL4623 | Solenoid driver with LFD | Datasheet |
| MTL4623L | Loop powered solenoid driver + LFD | Datasheet |
| MTL4623R | Solenoid driver with reverse LFD | Datasheet |
| MTL4624 | Switch operated solenoid driver | Datasheet |
| MTL4624S | Switch operated solenoid driver, 24V override | Datasheet |
| MTL4626 | 2ch switch operated relay | Datasheet |
| 4. Analogue Input | ||
| MTL4641 | 1ch 2/3 wire Transmitter repeater | Datasheet |
| MTL4641A | 1ch Transmitter repeater, passive input | |
| MTL4641AS | 1ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL4641S | 1ch 2/3 wire Transmitter repeater, current sink | Datasheet |
| MTL4644 | 2ch 2/3 wire Transmitter repeater | Datasheet |
| MTL4644A | 2ch Transmitter repeater, passive input | Datasheet |
| MTL4644AS | 2ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL4644D | 2/3 wire transmitter repeater, dual output | Datasheet |
| MTL4644S | 2ch 2/3 transmitter repeater, current sink | Datasheet |
| 5. Analogue Output | ||
| MTL4646 | 1ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL4646Y | 1ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| MTL4649 | 2ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL4649Y | 2ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| 6. Temperature Input | ||
| MTL4675 | 1ch Temperature converter with alarm | Datasheet |
| MTL4676-RTD | 2ch Temperature converter, RTD | Datasheet |
| MTL4676-THC | 2ch Temperature converter, THC | Datasheet |
| 7. Pulse Input | ||
| MTL4632 | 1ch pulse isolator, digital or analogue output | Datasheet |
