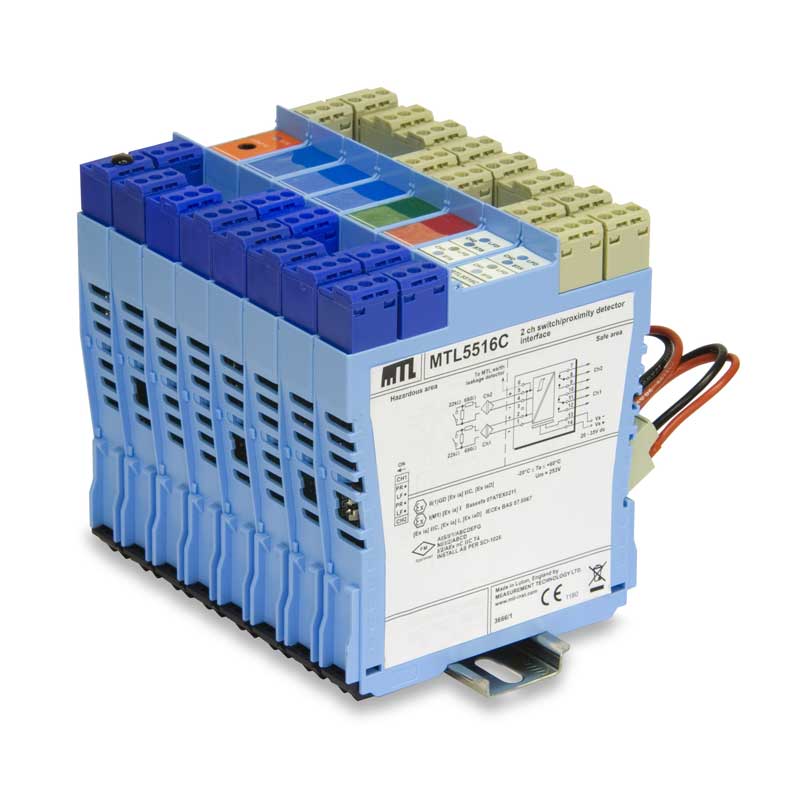

MTL5500 Serien
Mångsidiga isolatorer
MTL5500 serien är mångsidig och enkel att implementera med beprövad teknologi världen över.
- Hög packningstäthet med montage på DIN skena.
- Enkel och flerkanals I / O-moduler
- 3-portsisolation med låg effektförbrukning
- Kompatibel med MTL5000
För hjälp med att välja isolator för din applikation klicka här
För produkt certifikat klicka här
Produktbeskrivningar
| Produkt kod | Beskrivning | Nedladdning |
|---|---|---|
| Safety manuals | ||
| SM45-55-AI | FSM Safety Manual - Analogue Input Modules | Safety Manual |
| SM45-55-AO | FSM Safety Manual - Analogue Output Modules | Safety Manual |
| SM45-55-BI | FSM Safety Manual - Binary Input Modules | Safety Manual |
| SM45-55-SAD | FSM Safety Manual - Solenoid / Alarm Driver Modules | Safety Manual |
| Intro | ||
| INA5500 | MTL5500 Series Safety Instructions (ATEX) | Manual |
| INM5500 | MTL5500 Series Instruction Manual | Manual |
| MTL4500-5500-ACC | Enclosures & Accessories | Manual |
| MTL4500-5500-CS | Common Specifications | Manual |
| MTL4500-5500-DS | MTL4500-5500 Series Data Set | Datasheet |
| Digital Input | ||
| MTL5501-SR | 1ch DI failsafe solid-state output + LFD alarm | Datasheet |
| MTL5510 | 4ch DI solid-state ouput | Datasheet |
| MTL5510B | 4ch DI multifunction solid-state output | Datasheet |
| MTL5511 | 1ch DI relay output | Datasheet |
| MTL5513 | 2ch DI solid-state output | Datasheet |
| MTL5514 | 1ch DI relay output + LFD alarm | Datasheet |
| MTL5514D | 1ch switch/prox input, dual output relay | Datasheet |
| MTL5516C | 2ch DI with changeover relay output | Datasheet |
| MTL5517 | 2ch DI relay output + LFD alarm | Datasheet |
| Digital Output | ||
| MTL5521 | Loop powered solenoid driver, IIC | Datasheet |
| MTL5522 | Loop powered solenoid driver, IIB | Datasheet |
| MTL5523 | Solenoid driver with LFD | Datasheet |
| MTL5523V - VL | Solenoid/Alarm driver with voltage control | Datasheet |
| MTL5524 | Switch operated solenoid driver | Datasheet |
| MTL5525 | Loop powered solenoid driver low power | Datasheet |
| MTL5526 | 2ch switch operated relay | Datasheet |
| Analogue Input | ||
| MTL5541 | 1ch 2/3 wire Transmitter repeater | Datasheet |
| MTL5541A | 1ch Transmitter repeater, passive input | Datasheet |
| MTL5541AS | 1ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL5541S | 1ch 2/3 wire Transmitter repeater, current sink | Datasheet |
| MTL5544 | 2ch 2/3 wire Transmitter repeater | Datasheet |
| MTL5544A | 2ch Transmitter repeater, passive input | Datasheet |
| MTL5544AS | 2ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL5544D | 1ch 2/3 wire Transmitter repeater, dual output | Datasheet |
| MTL5544S | 2ch 2/3 wire Transmitter repeater, current sink | Datasheet |
| Analogue Output | ||
| MTL5546 | 1ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL5546Y | 1ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| MTL5549 | 2ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL5549Y | 2ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| Temperature Input | ||
| MTL5573 | 1ch Temperature converter, RTD / THC | Datasheet |
| MTL5575 | 1ch Temperature converter, RTD / THC with alarm | Datasheet |
| MTL5576-RTD | 2ch Temperature converter, RTD | Datasheet |
| MTL5576-THC | 2ch Temperature converter, THC | Datasheet |
| MTL5581 | 1ch mV/THC isolator for low-level signals | Datasheet |
| MTL5582 | 1ch resistance isolator | Datasheet |
| Pulse and Vibration | ||
| MTL5531 | 1ch vibration probe interface | Datasheet |
| MTL5532 | 1ch pulse isolator, digital or analogue output | Datasheet |
| MTL5533 | 2ch vibration probe interface | Datasheet |
| Fire and Smoke | ||
| MTL5561 | 2ch loop-powered, for fire and smoke detectors | Datasheet |
| General | ||
| MPA5500 | 85 - 265V ac power adaptor | Datasheet |
| MTL5599 | Dummy isolator | Datasheet |
| MTL5991 | 24V dc power supply | Datasheet |
