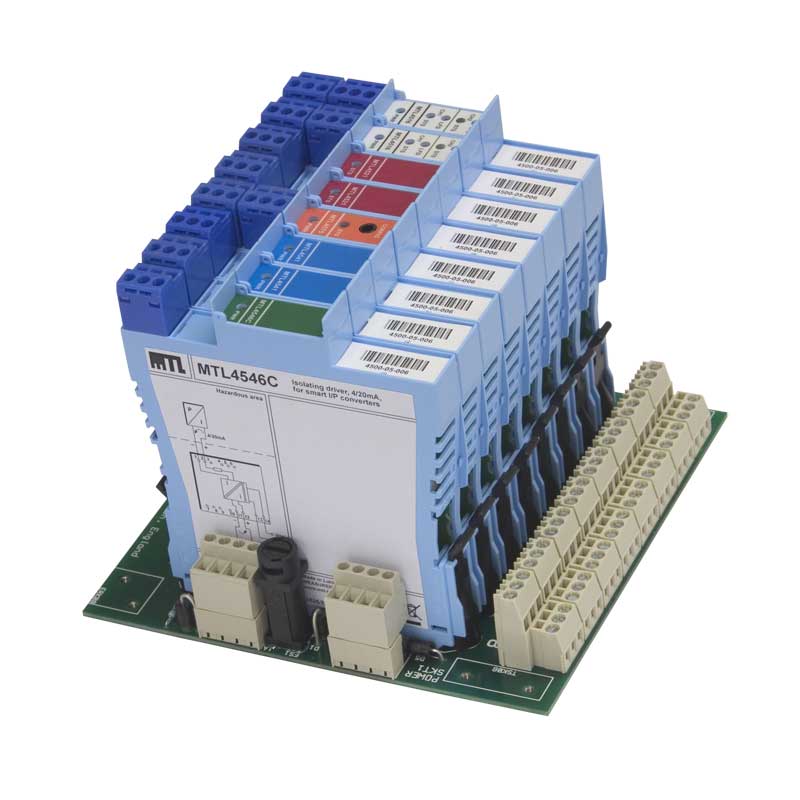

MTL4500 serien
MTL4500 serien bygger på samma teknik som MTL5500 serien men är anpassad för montering på kort/bakplan och dessa kort finns som standard eller modellanpassade till alla de stora styrsystemstillverkarna. Skicka oss gärna en förfrågan.
- Snabb in och urkoppling
- Högst packningstäthet på marknaden
- Enkel och flerkanals I/O moduler
- 3-ports isolation med mkt låg energiförbrukning och låg värmeutveckling
- Kompatibel med MTL4000 serien
För produkt certifikat <klicka här>
Produktbeskrivningar
| Produkt kod | Beskrivning | Nedladdning |
|---|---|---|
| Safety manuals | ||
| SM45-55-AI | FSM Safety Manual - Analogue Input Modules | Safety Manual |
| SM45-55-AO | FSM Safety Manual - Analogue Output Modules | Safety Manual |
| SM45-55-BI | FSM Safety Manual - Binary Input Modules | Safety Manual |
| SM45-55-SAD | FSM Safety Manual - Solenoid / Alarm Driver Modules | Safety Manual |
| Intro | ||
| INA4500 | MTL4500 range Safety Instructions (ATEX) | Manual |
| INM4500-4600 | MTL4500/4600 Series Instruction Manual | Manual |
| MTL4500-5500-ACC | Backplanes, Enclosures & Accessories | Datasheet |
| MTL4500-5500-CS | Common Specifications | Datasheet |
| MTL4500-5500-DS | MTL4500-5500 range Data Set | Datasheet |
| Digital Input | ||
| MTL4501-SR | 1ch DI failsafe solid-state output + LFD alarm | Datasheet |
| MTL4504 | 1ch DI relay output + LFD alarm + phase reversal | Datasheet |
| MTL4510 | 4ch DI solid-state output | Datasheet |
| MTL4510B | 4ch DI multifunction solid-state output | Datasheet |
| MTL4511 | 1ch DI relay output | Datasheet |
| MTL4513 | 2ch DI solid-state output | Datasheet |
| MTL4514D | 1ch switch/prox input, dual output relay | Datasheet |
| MTL4514_B | 1ch DI relay output + LFD alarm | Datasheet |
| MTL4516 | 2ch DI relay output | Datasheet |
| MTL4516C | 2ch DI with changeover relay output | Datasheet |
| MTL4517 | 2ch DI relay output + LFD alarm | Datasheet |
| Digital Output | ||
| MTL4521 | Loop powered solenoid driver | Datasheet |
| MTL4521L | loop powered solenoid driver IIC | Datasheet |
| MTL4523 | Solenoid driver with LFD | Datasheet |
| MTL4523L | Loop powered solenoid driver + LFD | Datasheet |
| MTL4523R | Solenoid driver with LFD | Datasheet |
| MTL4523V - VL | Solenoid/Alarm driver with voltage control | Datasheet |
| MTL4524 | Switch operated solenoid driver | Datasheet |
| MTL4524S | Switch operated solenoid driver, 24V override | Datasheet |
| MTL4525 | Switch operated solenoid driver low power | Datasheet |
| MTL4526 | 2ch switch operated relay | Datasheet |
| Analogue Input | ||
| MTL4541 | 1ch 2/3 wire Transmitter repeater | Datasheet |
| MTL4541A | 1ch Transmitter repeater, passive input | Datasheet |
| MTL4541AS | 1ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL4541B | MTL4041B replacement | Datasheet |
| MTL4541P | MTL4041P replacement | Datasheet |
| MTL4541S | 1ch 2/3 wire Transmitter repeater, current sink | Datasheet |
| MTL4541T | 2/3 wire Transmitter repeater | Datasheet |
| MTL4544 | 2ch 2/3 wire Transmitter repeater | Datasheet |
| MTL4544A | 2ch Transmitter repeater, passive input | Datasheet |
| MTL4544AS | 2ch Transmitter repeater, passive input, current sink | Datasheet |
| MTL4544B | MTL4044 replacement | Datasheet |
| MTL4544D | 2/3 wire transmitter repeater, dual output | Datasheet |
| MTL4544S | 2ch 2/3 transmitter repeater, current sink | Datasheet |
| Analogue Output | ||
| MTL4546 | 1ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL4546C | 1ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| MTL4546S | 1ch 4-20mA HART isolating driver + LFD | Datasheet |
| MTL4546Y | 1ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| MTL4549 | 2ch 4-20mA smart isolating driver + LFD | Datasheet |
| MTL4549C | 2ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| MTL4549Y | 2ch 4-20mA smart isolating driver + oc LFD | Datasheet |
| Temperature Input | ||
| MTL4573 | 1ch Temperature converter, RTD / THC | Datasheet |
| MTL4575 | 1ch Temperature converter, RTD / THC with alarm | Datasheet |
| MTL4576-RTD | 2ch Temperature converter, RTD | Datasheet |
| MTL4576-THC | 2ch Temperature converter, THC | Datasheet |
| MTL4581 | 1ch mV/THC isolator for low-level signals | Datasheet |
| Pulse and Vibration | ||
| MTL4531 | 1ch vibration probe interface | Datasheet |
| MTL4532 | 1ch pulse isolator, digital or analogue output | Datasheet |
| Fire and Smoke | ||
| MTL4561 | 2ch loop-powered, for fire and smoke detectors | Datasheet |
| General | ||
| MTL4599 | Dummy isolator | - |
| MTL4599N | General purpose feed-through module | Datasheet |
