When deploying a wireless network often more thought is given to the device types than the antennas, cabling and connections. These wireless accessories can determine the successful operation of a system as they often have a large impact on signal strengths, distances and bandwidths that are achievable. We offer a high quality range of antennas, cabling and surge equipment to support these wireless systems, ensuring that the signal is available when and where it is needed. We also provide advice on selecting a system and appropriate antennas / cabling. Contact enquiry@mtl-inst.com to discuss a solution or make a recommendation on antennas and cabling. Our trained technical personnel will be happy to help.
Produkt kod | Beskrivning | Nedladdning |
---|---|---|
1. Antennas - 800 & 900 MHz | ||
ANTCFD890EL | Dipole with 15’ RG58/SMA connector | |
ANTDG900-1 | Whip with 3’ RG174/SMA connector, angle bracket -2dB gain, 7” long | |

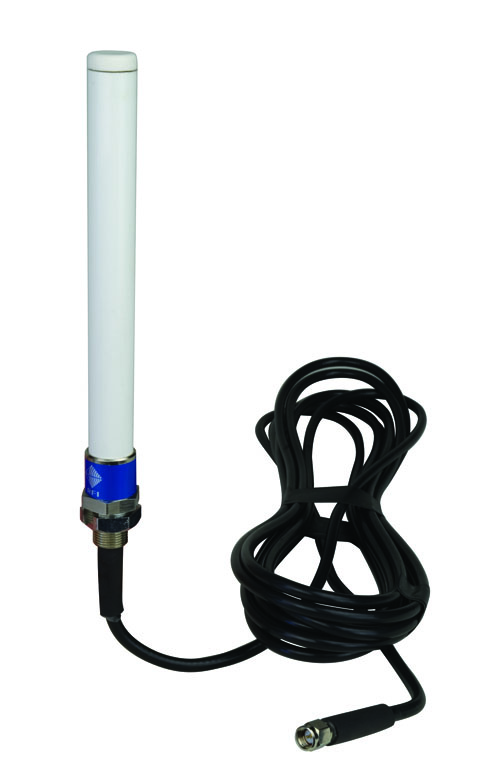

ANTSG900-6 | Colinear with N-type connector, 8dB gain, 54” long | |
ANTSG900EL | Colinear with N-type connector, 5dB gain, 32"long | |
ANTWH900-SMA | Demo whip antenna, 4” SMA connector | |
ANTYU16-900 | 16 element Yagi antenna with N-type connector 15dB gain | |
ANTYU6-900 | 6 element Yagi antenna with N-type connector 10dB Gain | |
2. Antennas - 2.4 GHz | ||
ANTMD2400-EL | Dipole with 15’ Cellfoil/SMA connector, and mounting bracket, 0dB gain, 9” long | |
ANTSG2400EL | Colinear with N-type connector, 5dB gain, 20"long with mounting bracket | |
ANTY2400-18EL | Directional radome Yagi, N-type connector, 18dB gain | |
ANTZ2400EL | Colinear with N-type connector, 8dB gain, 34” long with mounting bracket |
